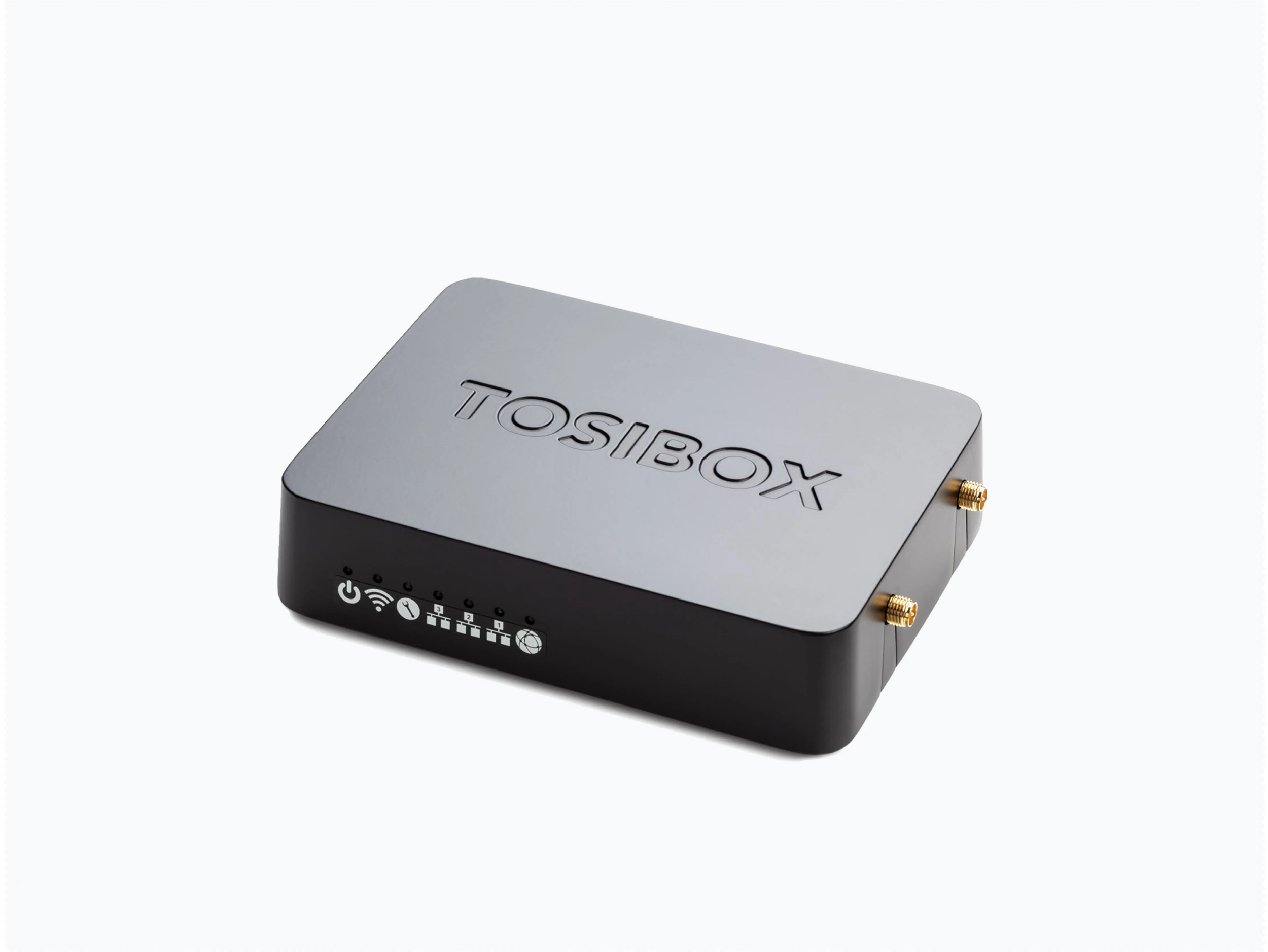

TOSIBOX® Lock 150
TOSIBOX® Lock 150 is an industrial router that provide secure remote connections and protect IoT devices through its built-in firewall and encrypted VPN connection. Its modular design and compatibility with all TOSIBOX® products facilitate with effortless network expansion,easy integration into LAN and WAN networks.
Key Features
Less than 5 minutes, without the need for software installations
Firewall friendly
Up to 10 concurrent VPN connections
Audited and patented security
Product Information
Specifications
Ports | 1 x USB 2.0, type A, 500 mA maximum load allowed 1 x RJ-45 WAN conn., 10/100 Mb/s, auto-negotiation (MDI / MDI-X) 3 x RJ-45 LAN conn., 10/100 Mb/s, auto-negotiation (MDI / MDI-X) 1 x RJ-45 Service conn., 10/100 Mb/s, auto-negotiation (MDI / MDI-X) | |
Connections | 10-30V DC +-10% (reverse polarity protected) 2 x Wireless network antenna connector, RP-SMA DIN rail attachment (bottom), angle bracket available as an accessory (TBMBD1) | |
Physical properties | 132 mm x 99 mm x 35.5 mm / 5.2″ x 3.9″ x 1.4″ (L x W x H) Weight 365g / 1.31 lbs. (net weight article) Operating Temperature: -20 °C … +55 °C / -4 °F … 131 °F Operating humidity 20 – 80% RH, non-condensing Storage temperature -40 °C … +70 °C / -40 °F … 158 °F Cast aluminium casing IP protection class: IP20 Maximum operating altitude 2000 m / 6562 ft Overvoltage category |
Resources
Support
Link with Us
We would love to hear from you! Feel free to contact us.
+65 60288844
Linktronics Innovation Pte Ltd Blk 3 Ang Mo Kio Industrial Park 2A, AMK Tech 1, #06-05 Singapore 568050
TOSIBOX® Lock 150
An encrypted VPN connection is provided via a safe industrial router that has firewall and simple Plug & Go™ connectivity, allowing access to IoT devices over the Internet and other networks
