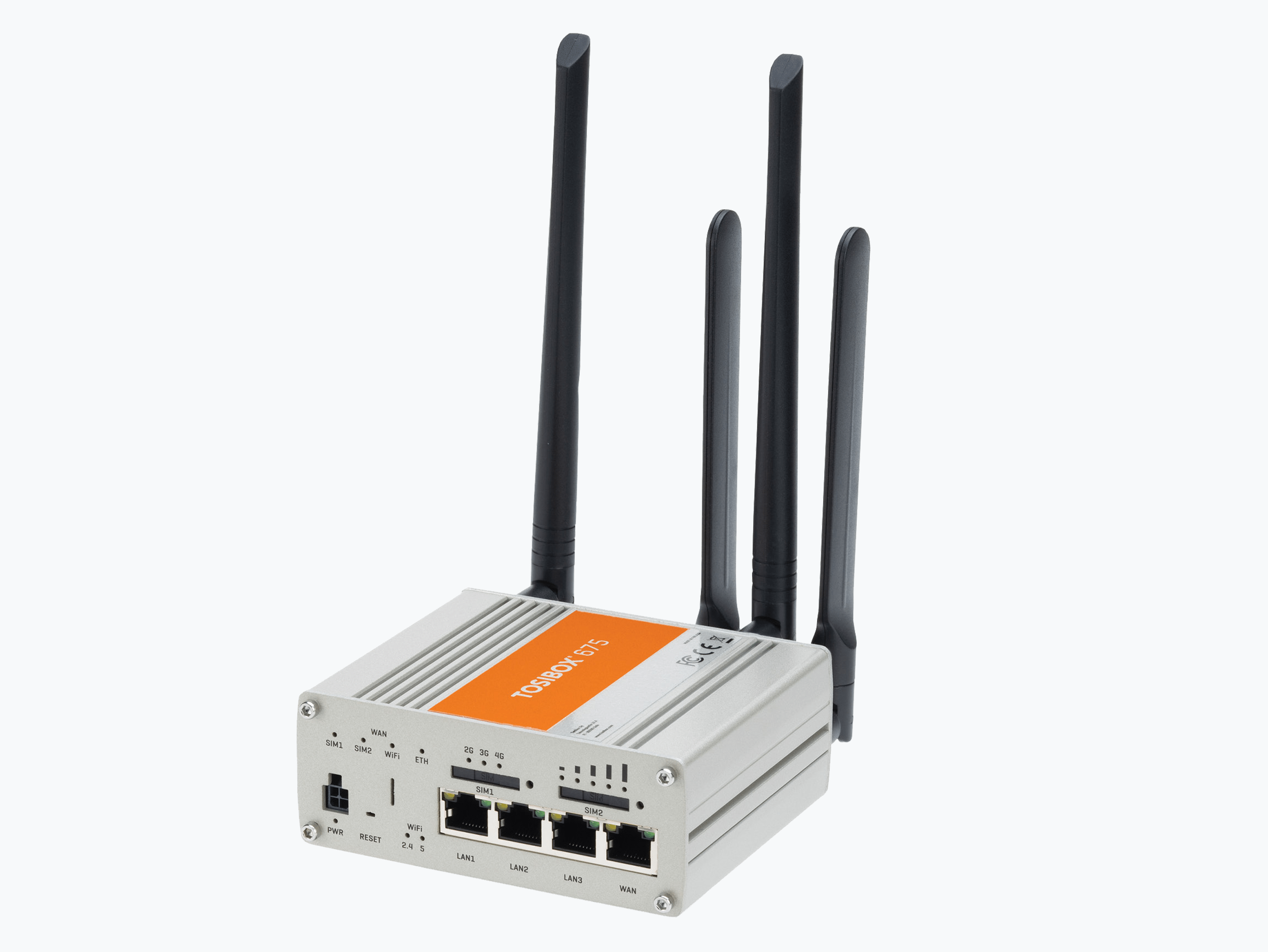

TOSIBOX® 675
TOSIBOX® 675 is a rosbust and high-performance device engineered to excel in challenging industrial environments, offering a dependable and extensive array of connectivity interfaces. With a focus on power-intensive industrial applications, it delivers impressive VPN throughput and end-to-end encryption, ensuring secure data transmission between Tosibox devices, users, and servers.
Key Features
Independent of operating systems
Dual-SIM slots for reliable connectivity
Built-in firewall, NAT
Up to 50 concurrent VPN connections
Product Information
Specifications
Ports | 1 x RJ-45 WAN conn., 10/100/ 100 Mb/s, auto-negotiation (MDI / MDI-X) 3 x RJ-45 LAN conn., 10/100/1000 Mb/s, auto-negotiation (MDI / MDI-X) 1 x USB 2.0, Type A | |
Connections | 4 pin industrial DC power socket 9-50V DC, reverse polarity protection, voltage surge/ transient protection 2 x RP-SMA for WiFi 1 x GNSS DIN rail mounting slot in the back and on the both sides Maximum power consumption 16W | |
I/O Specifications | 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high 1 x Digital Output, open collector output, max output 30 V, 300 mA Software configurable I/O state Requires separate I/O cable (TB600PAC1 or TB600PAC2) | |
Physical properties | 115 mm x 44.2 mm x 95.1 mm / 4.52″ x 1.74″ x 3.74″ (W x H x L) Weight 456g / 100 lbs. (Net weight article) Storage temperature -40 °C … +75 °C / -40 °F … +167 °F Operating temperature -40 °C … +75 °C / -40 °F … +167 °F Power supply operating temperature -10 °C … +40 °C / 14 °F … +104 °F Power storage temperature -20 °C … +70 °C / -4 °F … +158 °F Protection class IP30 |
