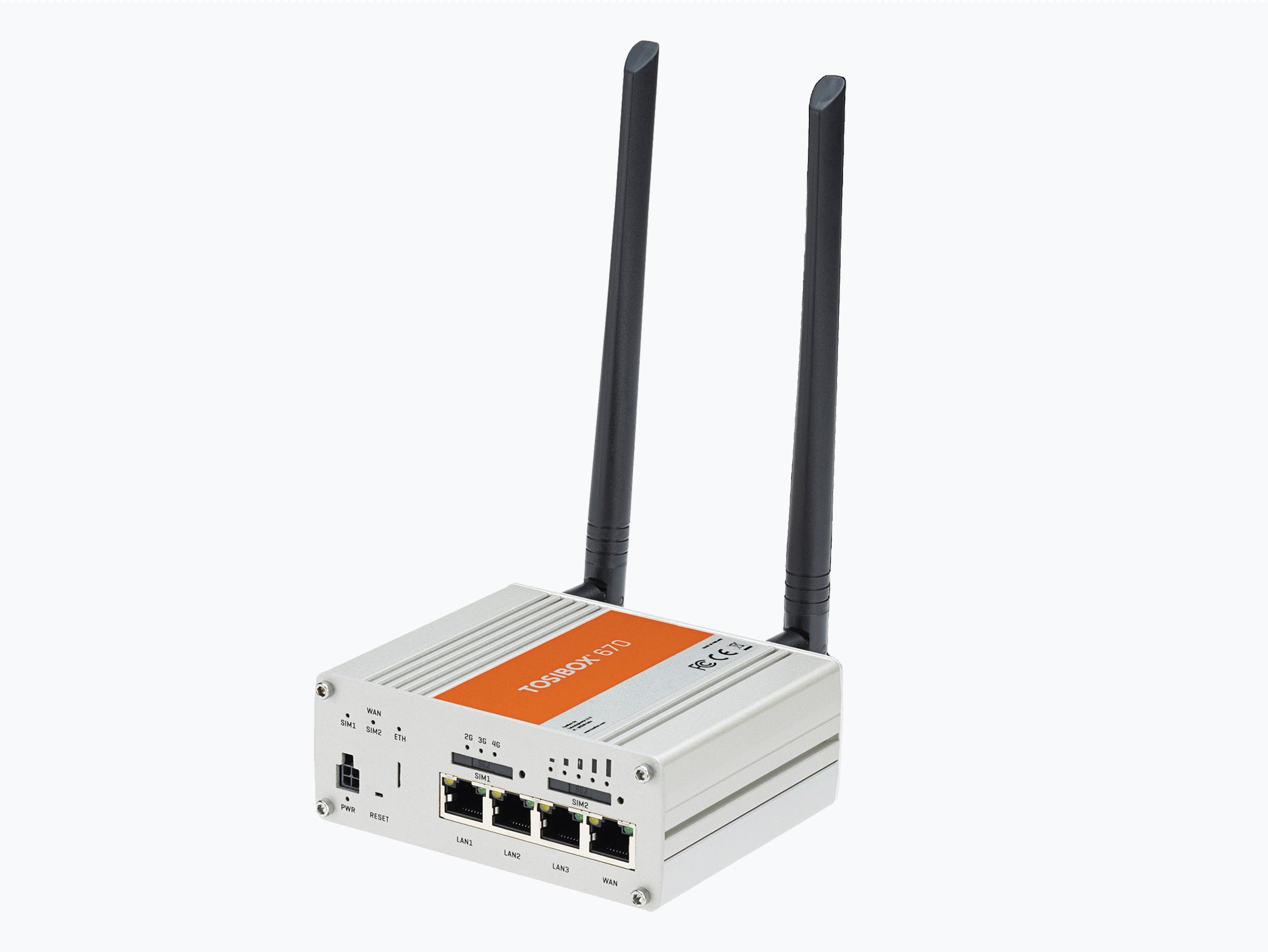

TOSIBOX® 670
TOSIBOX® 670, the ultimate solution for reliable and high-speed internet connectivity. With its built-in global LTE modem and dual-SIM slots for operator redundancy, you can enjoy seamless connectivity with speeds up to 300Mbps, making it perfect as a main or backup internet source. This versatile device, combined with advanced Cyber security technology from Tosibox, opens up a world of possibilities for various application scenarios.
Key Features
Independent of operating systems
Dual-SIM slots for reliable connectivity
Built-in firewall, NAT
Up to 50 concurrent VPN connections
Product Information
Specifications
| Ports | 1 x RJ-45 WAN conn., 10/100/ 100 Mb/s, auto-negotiation (MDI / MDI-X) 3 x RJ-45 LAN conn., 10/100/1000 Mb/s, auto-negotiation (MDI / MDI-X) 1 x USB 2.0, Type A | |
| Connections | 4 pin industrial DC power socket 9-50V DC, reverse polarity protection, voltage surge/ transient protection 2 x SMA for LTE 1 x GNSS DIN rail mounting slot in the back and on the both sides Maximum power consumption 9W | |
| I/O Specifications | 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high 1 x Digital Output, open collector output, max output 30 V, 300 mA Software configurable I/O state Requires separate I/O cable (TB600PAC1 or TB600PAC2) | |
| Physical properties | 115 mm x 44.2 mm x 95.1 mm / 4.52″ x 1.74″ x 3.74″ (W x H x L) Weight 455g / 100 lbs. (Net weight article) Storage temperature -40 °C … +75 °C / -40 °F … +167 °F Operating temperature -40 °C … +75 °C / -40 °F … +167 °F Power supply operating temperature -10 °C … +40 °C / 14 °F … +104 °F Power storage temperature -20 °C … +70 °C / -4 °F … +158 °F Protection class IP30 |
Resources
Support
Link with Us
We would love to hear from you! Feel free to contact us.
+65 60288844
Linktronics Innovation Pte Ltd Blk 3 Ang Mo Kio Industrial Park 2A, AMK Tech 1, #06-05 Singapore 568050
TOSIBOX® 670
Ideal for high-speed Internet connections, whether as a primary or backup source, with a smooth LTE-enabled Plug & Go™ device for consistent connection and efficient data transfer.
